Description

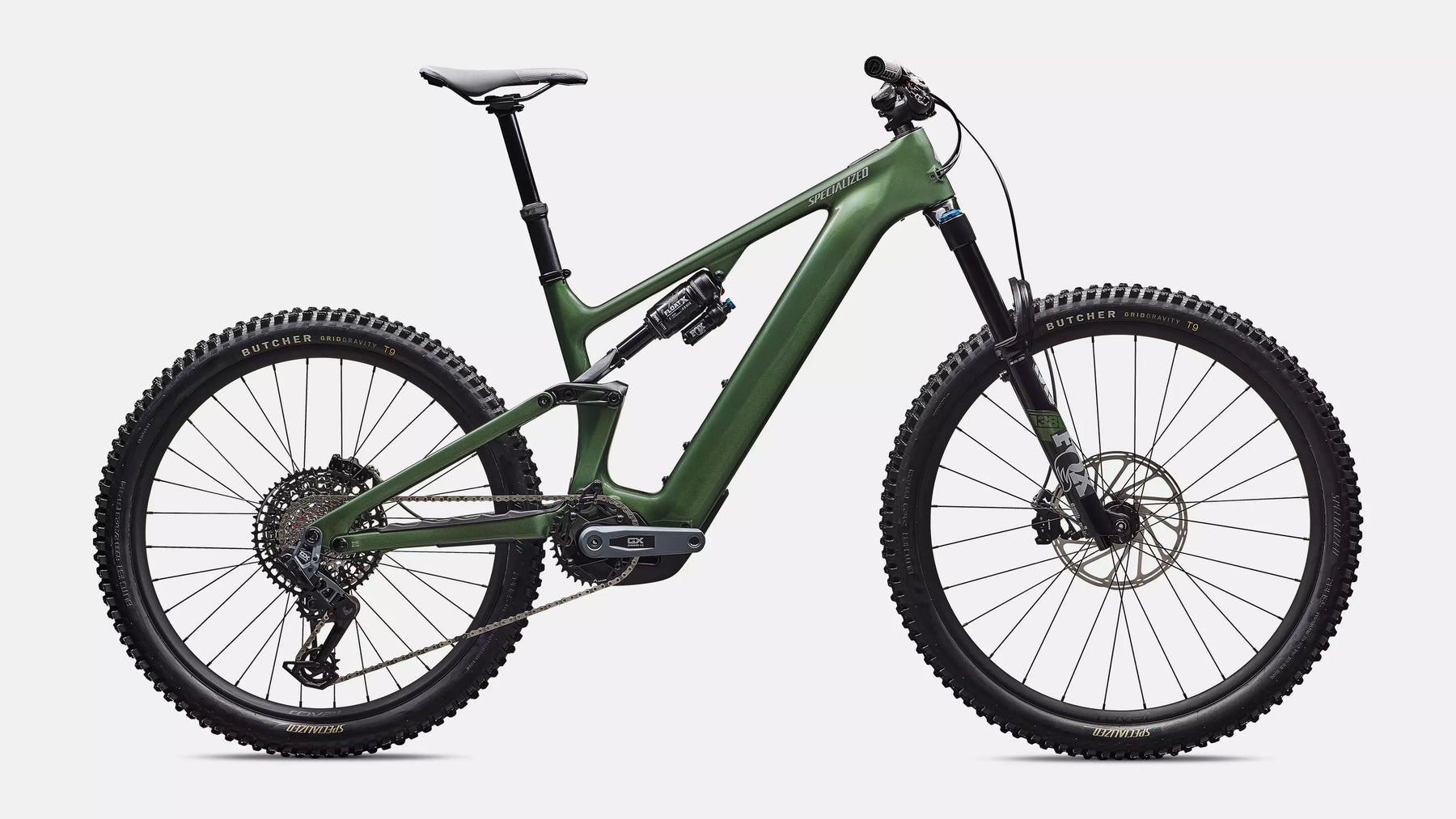

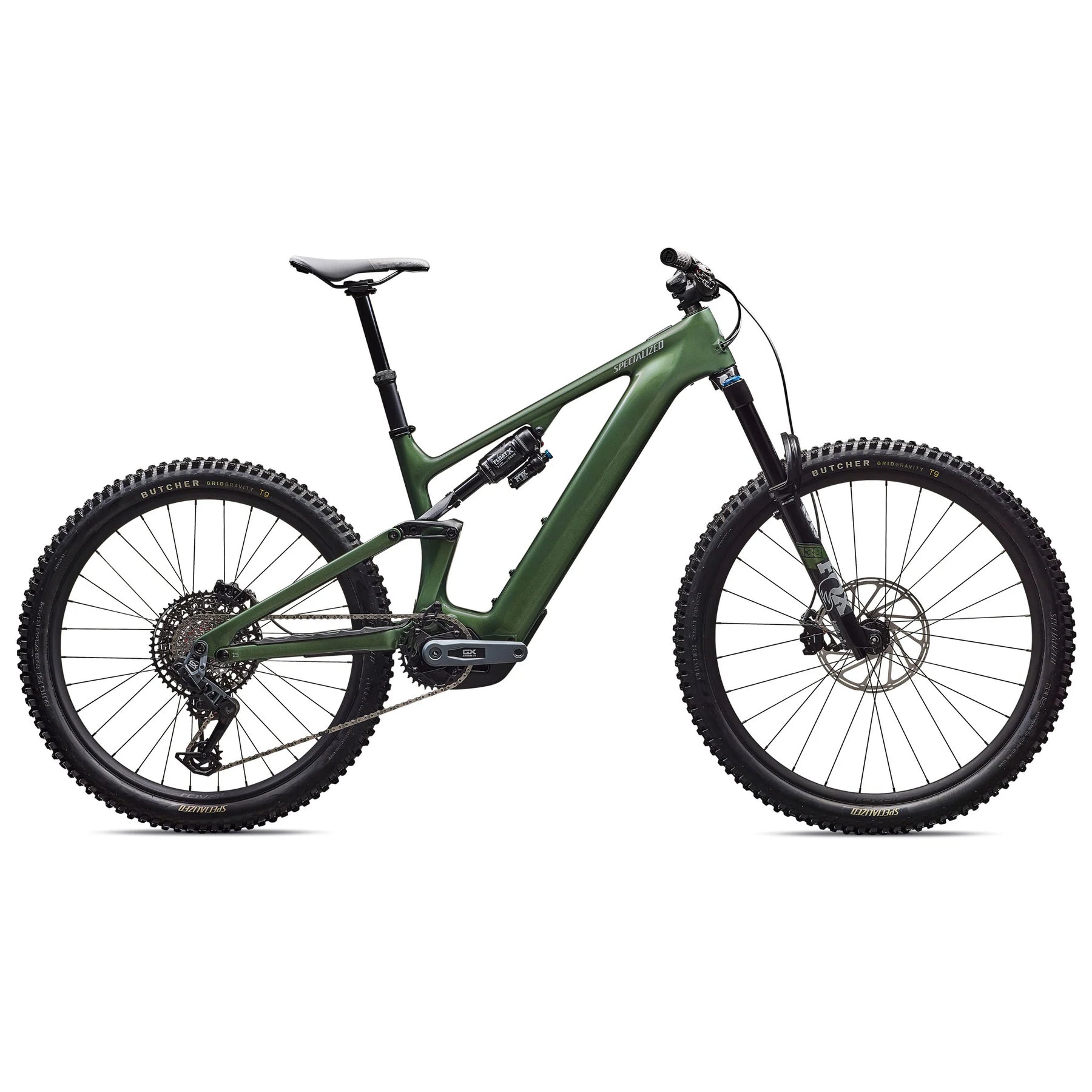

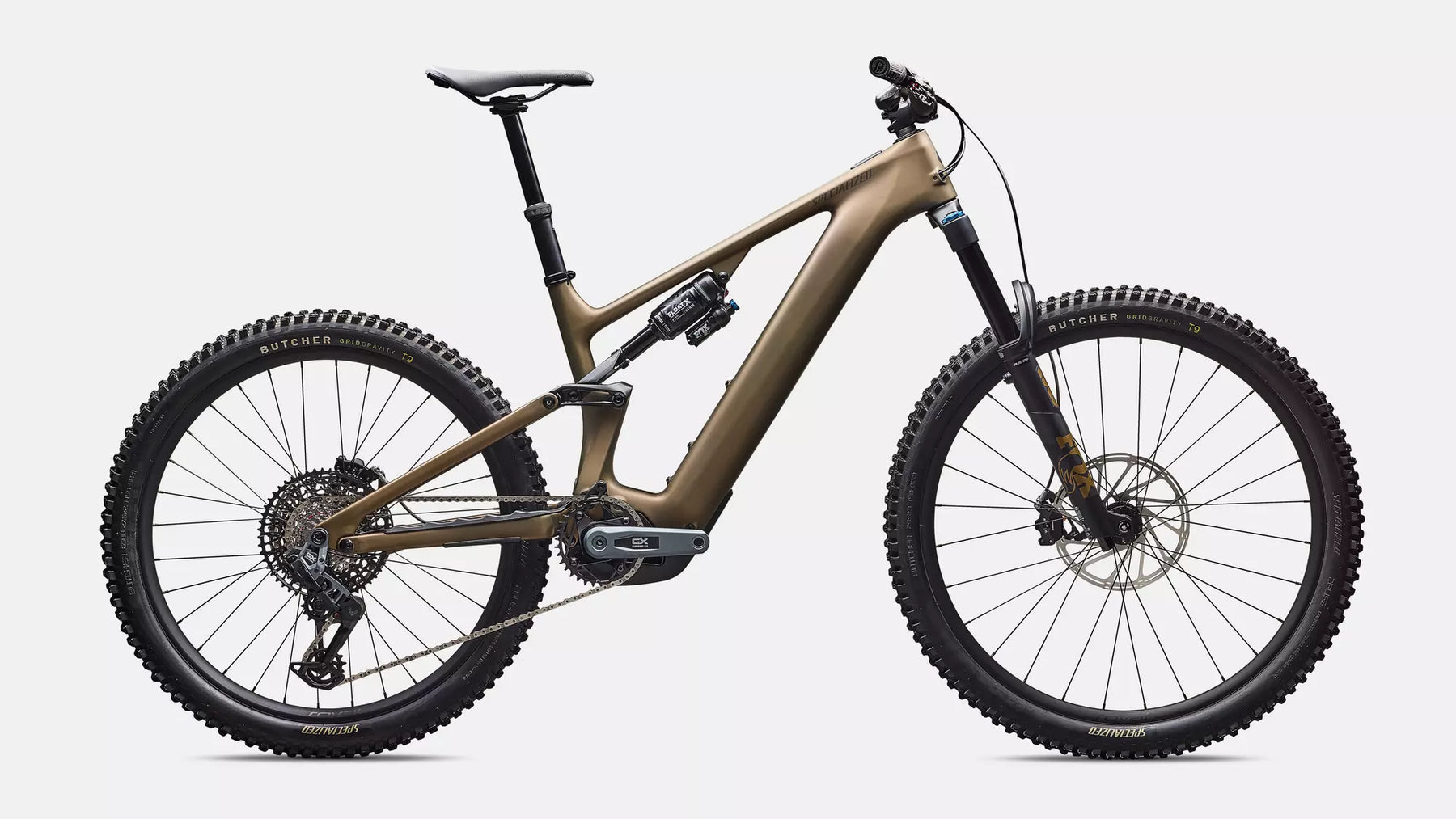

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so
advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified
with super power, traction, control, and range to conquer any off-road terrain. Levo 4,
Where Super Meets Natural.
• Use - Full Power E-MTB Trail
• E-System - Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to
5.33 hour range
• Frame - FACT 11m Carbon, Geo Adj & SWAT Storage
• Suspension - Front: 160mm FOX 38 Performance Elite GRIPX2, Rear: 150mm
GENIE - FOX FLOAT X Performance Elite
• Drivetrain - SRAM GX Eagle T-Type AXS
• Wheels - Roval Traverse Alloy / DT 370
Specifications
| Component | Specification |
| Motor | All New Specialized 3.1 Motor, 101Nm torque, 666W power |
| Battery | 840Wh battery |
| UI/Remote | MasterMind T3 Display System, 2.2" high-resolution color screen, fully customizable with Specialized app |
| Charger | Specialized 4A charger |
| Frame | All new Levo 4 frame, 150mm travel, SWAT storage, side entry battery, fork travel up to 180mm |
| Seat Binder | Alloy, 38.6mm |
| Rear Shock | FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever with 3-setting Open mode tuning, LSR adjustment |
| Fork | Fox 38 Performance Elite series, 29", Grip X2 damper, 15x110mm axle, 44mm offset, 160mm travel |
| Front Brake | SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor |
| Rear Brake | SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor |
| Shift Levers | SRAM AXS POD Controller |
| Rear Derailleur | SRAM GX Eagle Transmission Derailleur |
| Cassette | SRAM GX Eagle Transmission, 12-speed, 10-52t |
| Chain | SRAM GX Eagle Transmission Flattop Chain |
| Crankset | SRAM GX Eagle Crankset, Integrated Guard, 55mm Chainline, 155mm |
| Chainring | SRAM T-type ring, 34T |
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.3" |
| Front Wheel | Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.3" |
| Rear Wheel | Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h |
| Inner Tubes | Standard, Presta valve |
| Stem | Alloy Trail Stem, 35mm bar bore |
| Handlebars | Specialized 6061 alloy, 6° upsweep, 8° backsweep, S2: 30mm rise, S3–S6: 40mm rise, 780mm width |
| Grips | Deity Lockjaw grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails |
| Seatpost | PNW Loam post with travel adjust (S2: 150mm, S3: 170mm, S4/S5/S6: 200mm) |
| SWAT Storage | Internal downtube storage |
| Product ID | 218704 |
| Weight | 24.41 kg (53 lb, 13.0 oz) |
| Weight Size | S4 |
Geometry
| Specification | S2 | S3 | S4 | S5 | S6 |
| Stack (mm) | 618 | 626 | 638 | 652 | 667 |
| Reach (mm) | 435 | 455 | 480 | 505 | 535 |
| Headtube Length (mm) | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle (°) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Bottom Bracket Height (mm) | 350 | 350 | 350 | 350 | 350 |
| Bottom Bracket Drop (mm) | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail (mm) | 132 | 132 | 132 | 132 | 132 |
| Fork Length (Full) (mm) | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset (mm) | 44 | 44 | 44 | 44 | 44 |
| Front Center (mm) | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top Tube Length (Horizontal) (mm) | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height (mm) | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length (mm) | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle (°) | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST (mm) | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion (mm) | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion (mm) | 80 | 80 | 80 | 80 | 80 |
| Crank Length (mm) | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width (mm) | 780 | 800 | 800 | 800 | 800 |
| Stem Length (mm) | 40 | 40 | 40 | 40 | 40 |
| Saddle Width (mm) | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length (mm) | 125 | 170 | 200 | 200 | 200 |
