Kit Spec

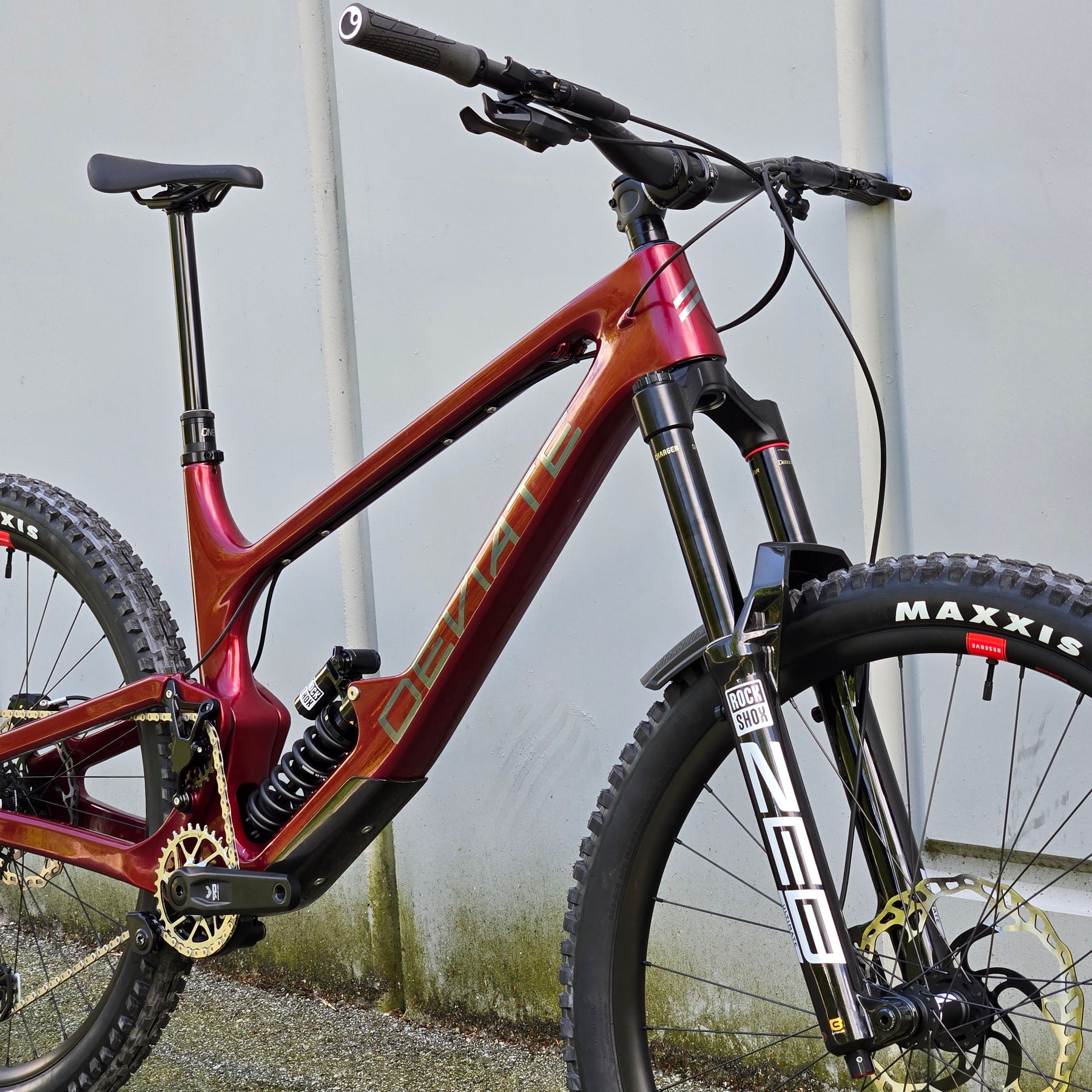

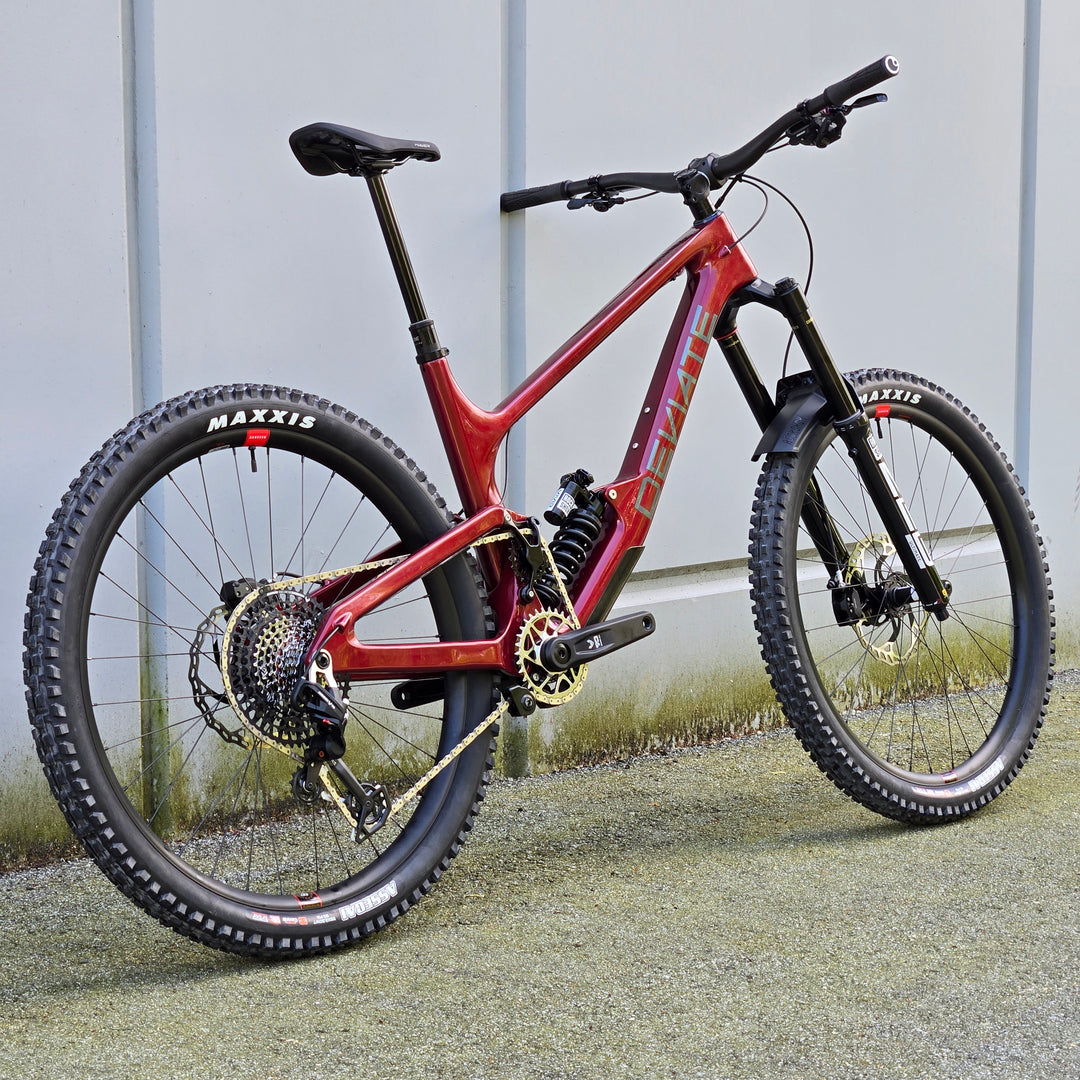

The Deviate Claymore full-suspension mountain bike (MTB) frame features a full-carbon make-up, designed to work with 29" wheels front and rear. The frame is optimised for enduro racing where it offers an unrivalled balance of high-speed control and excellent pedalling efficiency for all-day riding comfort thanks to our meticulously tested high-pivot suspension design . The frame is compatible with both 180mm and 170mm long travel forks for the front travel and 165mm of travel for the rear wheel.
Frame Deviate Claymore UDH, Full Carbon, 165mm Travel

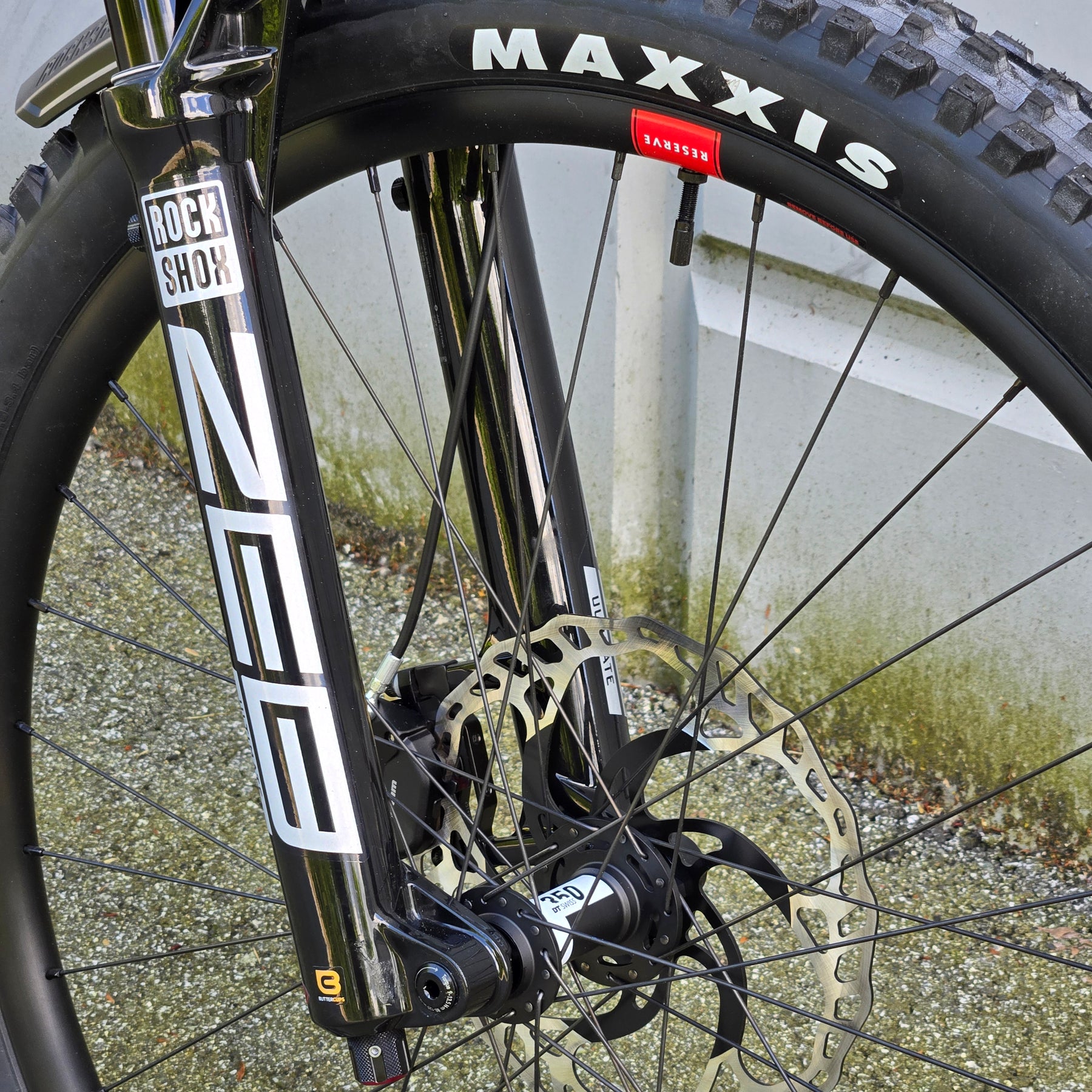

Fork Rockshox Zeb Ultimate 29" 180mm Charger 3.1, Debonair+

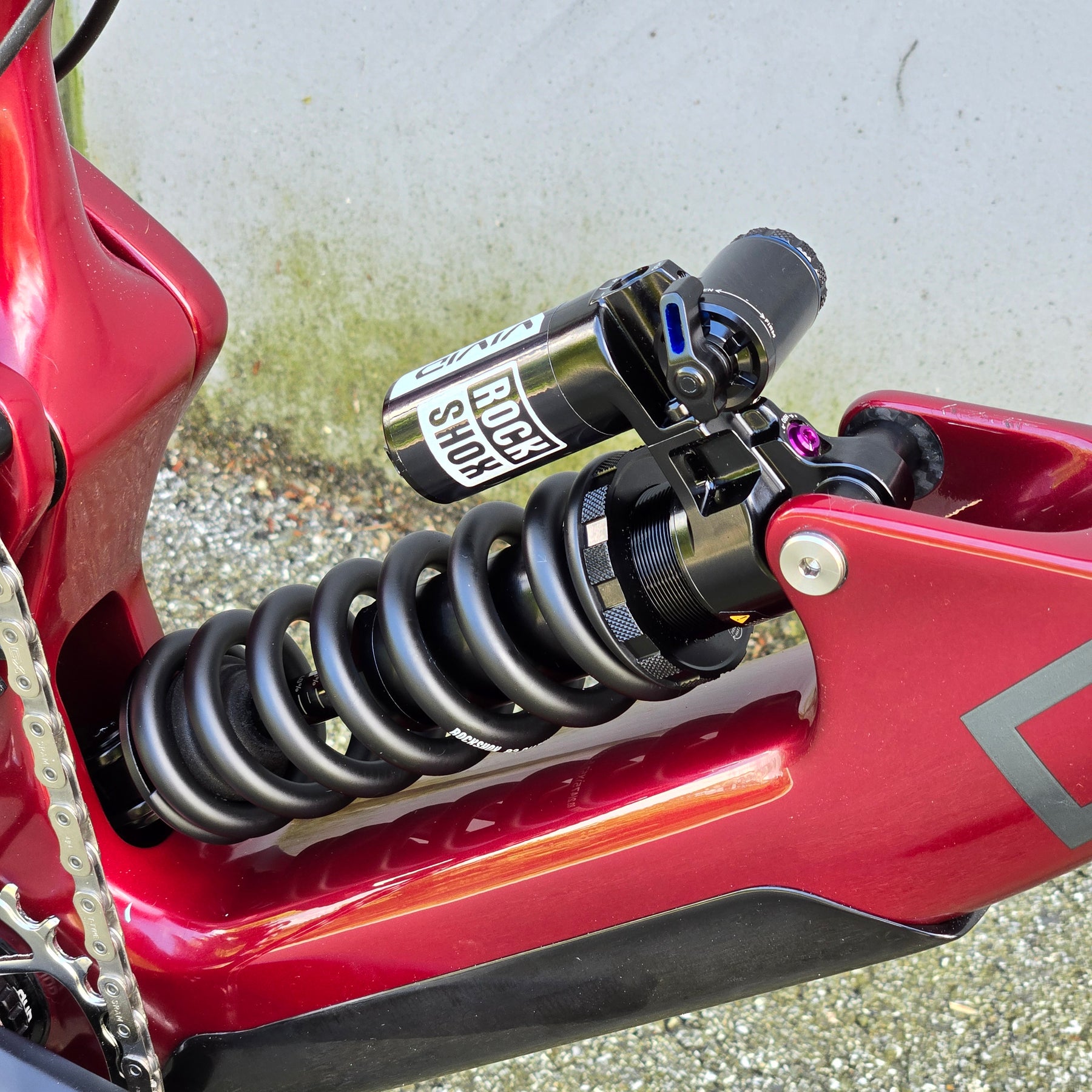

Shock Rockshox Vivid Ultimate Coil.
Wheels Reserve 30 HD AL 29"/29", DT Swiss 350 DEG (90t) hubs.
Crankset SRAM Eagle 90 Transmission 170mm
Chainring SRAM Eagle 90 Transmission 170mm
Chain SRAM Eagle 90 Transmission

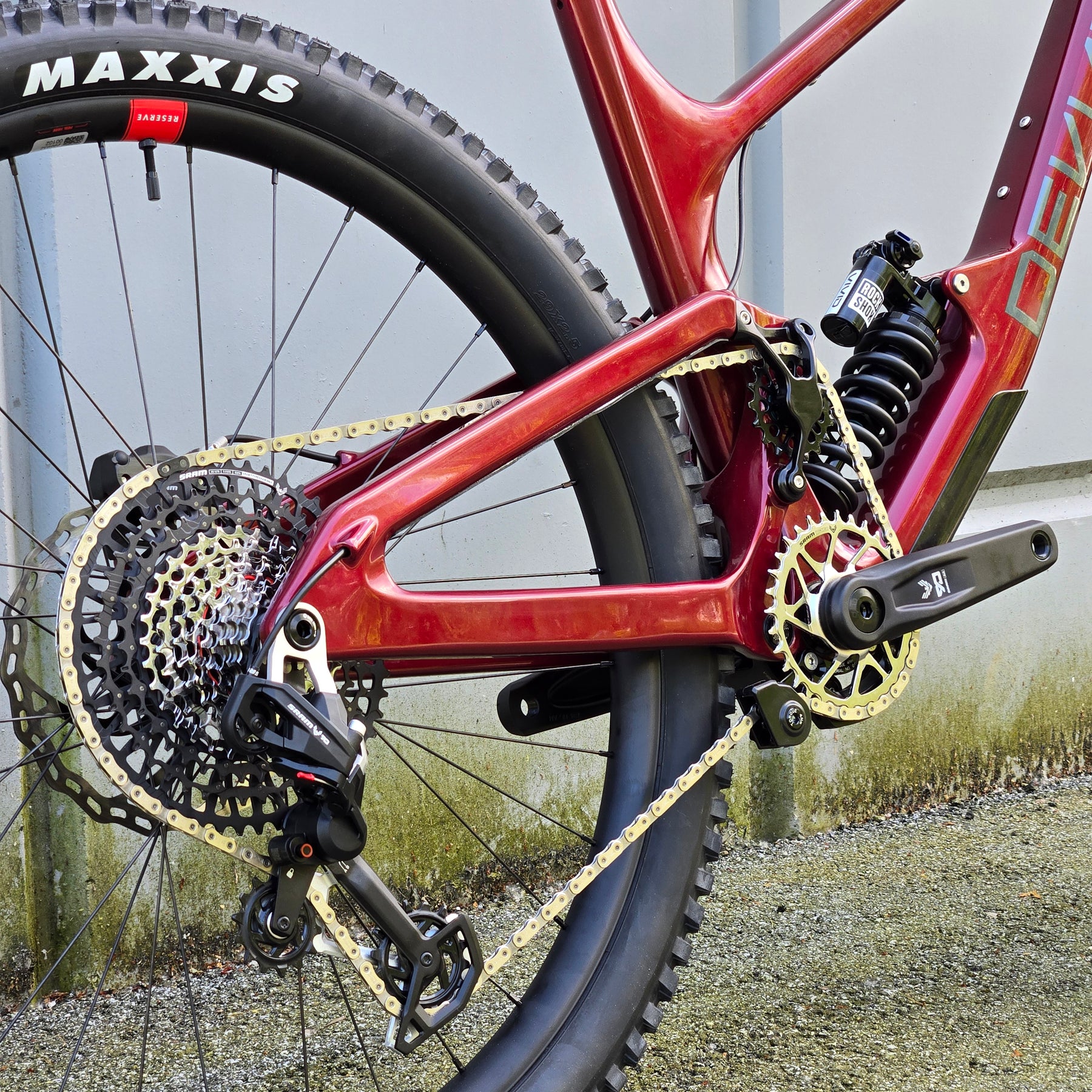

Derailleur SRAM Eagle 90 Transmission
Shifter SRAM Eagle 90 Transmission 170mm
Cassette SRAM Eagle 90 Transmission 170mm
Dropper Post One Up V3 Dropper Post 210mm
Saddle Specialized
Remote PNW Loam Remote
Tires Maxxis Assegai EXO+ 29"x2.5" Maxxterra & Assegai EXO+ Maxxterra 29"x2.5"
Stem Race Face Aeffect
Handlebar Race Face Next R Carbon Handlebar
Grips Ergon GA2

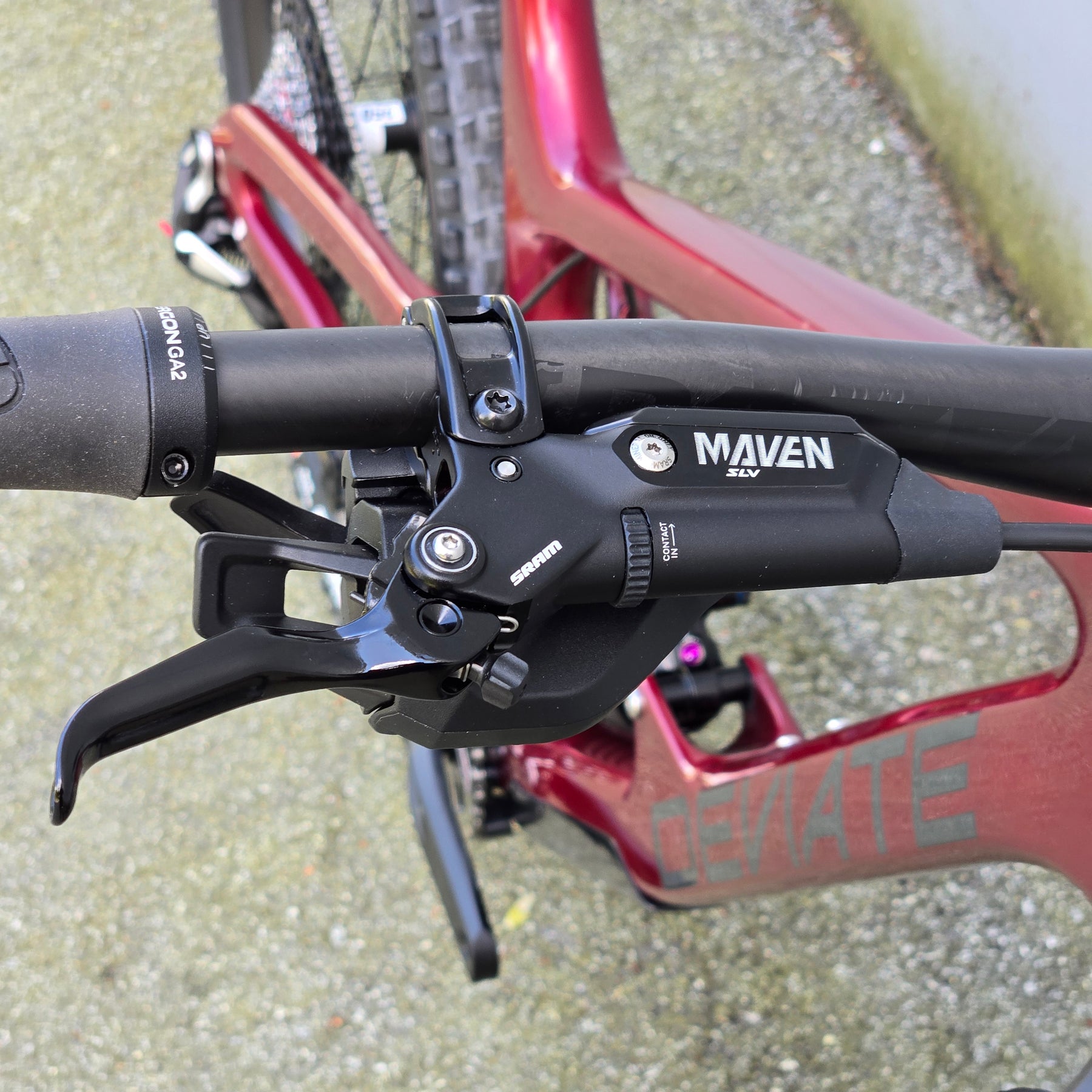

Brakes SRAM Maven Silver 4-piston brakes
Rotors Galfer Wave 223mm/203mm rotors
Bottom Bracket Sram DUB BB BSA
Headset Cane Creek 40
Chainguide Deviate Bash/chaninguide
Sizing Guide
Geometry
Component Standards
Rear Wheel: 29”, Boost: 148mm * 12mm
Fork Compatibility: 29” 170 or 180mm with 44/42mm offset
Bottom Bracket: 73mm BSA Threaded
Headset: ZS44/28.6 upper and a ZS56/40 lower headset cup
Cranks: Minimum Q-factor of 168mm
Chainline: 52mm
Chain length: 126 links (widely available, no need to join chains)
Max Chainring Size: 36t
Shock Size: Metric 230*60mm
Shock Hardware: Front: 40*8mm | Rear: Eyelet bushing
Brake Mount: Post Mount 180mm
Seatpost Compatibility: Internal dropper routing with internal cable routing. 34.9”
Seat Collar: 38.5mm
Mech hanger: UDH (Universal Derailleur Hanger)
Rear Axle: M12xP1.75 | 192mm long | Thread length is 26mm (minimum 20mm)
Fork Compatibility: 29” 170 or 180mm with 44/42mm offset
Bottom Bracket: 73mm BSA Threaded
Headset: ZS44/28.6 upper and a ZS56/40 lower headset cup
Cranks: Minimum Q-factor of 168mm
Chainline: 52mm
Chain length: 126 links (widely available, no need to join chains)
Max Chainring Size: 36t
Shock Size: Metric 230*60mm
Shock Hardware: Front: 40*8mm | Rear: Eyelet bushing
Brake Mount: Post Mount 180mm
Seatpost Compatibility: Internal dropper routing with internal cable routing. 34.9”
Seat Collar: 38.5mm
Mech hanger: UDH (Universal Derailleur Hanger)
Rear Axle: M12xP1.75 | 192mm long | Thread length is 26mm (minimum 20mm)
Deviate Claymore FAQ
Yes, the bike and all the parts arrive 90% assembled and require a very minimal assembly.
We suggest around 30% for most riders, but this will vary depending on terrain and personal preference.
No - a standard 126 link chain will work with even a 12 speed Shimano or Sram set-up.
ZS44/28.6 upper and a ZS56/40 lower headset cup.
Absolutely. We have two lower ISCG-05 tabs which allow the use of a lower guide/bash.
Yes! Just select the MX wheel size option.
We suggest a 170-180mm fork with a 44mm offset. A 51mm offset is compatible and will lead to a slightly more lively steering feel. We do not recommend triple clamp or dual crown forks with the Claymore.
The Claymore will work with most coil or air shocks on the market - we recommend a mid-mid initial tune. We can’t guarantee that a specific shock will have clearance. The shocks available on our online store are all compatible. Please note that shocks with rear rebound adjustment may be problematic to adjust.
We’ve designed The Claymore to run 2.6” tires.
Deviate
High Pivot Bikes
Deviate's Vision: To accelerate the evolution of mountain bike design, for and with riders
The Claymore
"High Pivot Heaven" - Pinkbike's Field Test
"The unique kinematics of a high pivot point design maintains chassis stability and geometry under heavy braking. This allows our designers to achieve stability and straight line speed while maintaining sensible geometry."
Designed to win
Speed without sacrifice
The design brief was to create an enduro bike capable of winning on the toughest of enduro stages, with pedal performance to match a trail bike and an element of playfulness for those days when you’re not between the tape.
