Deviate Cycles Claymore 2024 Fox Factory
Deviate Cycles Claymore 2024 Fox Factory
Deviate Cycles Claymore 2024 Fox Factory
Deviate Cycles Claymore 2024 Fox Factory

Deviate Cycles Claymore 2024 Fox Factory

IMBY's Custom Deviate Builds - Assembled and shipped from BC, Canada!
  • Deviate Claymore Full Carbon, 2024 UDH
  • Fox 38 Factory 29" GripX2 2025
  • Fox Float X2 Factory.
$8,999.00
/
Shipping calculated at checkout.
Size
Color
  • Low stock - 1 item left
  • Backordered, shipping soon

Frame Deviate Claymore UDH, Full Carbon, 165mm Travel
Fork Fox 38 Factory 29" 170mm GRIPX2 (2025)
Shock Fox Float X2 Factory
Wheels Race Face Turbine 29" Wheels (tubeless ready)
Crankset Race Face Turbine R Cinch 170mm
Chainring Raceface SHI12 Chainring
Chain Shimano XT 12spd M8100
Derailleur Shimano XT 12spd M8100
Shifter Shimano XT 12spd M8100
Cassette Shimano XT 12spd M8100 10t-51t
Dropper Post One Up V3 Dropper Post
Saddle Ergon SM Enduro Saddle
Remote One Up V3 Remote
Tires Maxxis Minion DHR II 29"x2.4 EXO+ Maxxterra & Assegai EXO+ Maxxgrip 29"2.5"
Stem Race Face Aeffect
Handlebar Race Face Turbine 35mm, 800mm, 20mm
Grips One Up Black
Brakes Shimano XT M8120 4-piston
Rotors Galfer Wave 203mm/180mm rotors
Bottom Bracket Raceface BSA Cinch BB
Headset Cane Creek 40

*Spec is subject to change, and bikes might not be exactly as pictured.

Bike orders will ship within 2 to 3 weeks.

Shoot us an email or give us a call. Monday to Saturday, 10am - 6pm (Pacific Standard Time).

Phone - 778-598-0448

Email - sales@imbybikes.com

Bikes are shipped 90% assembled in order to fit in the box. It will require some very basic assembly once you receive it.

Bikes for In-store pickup are completely assembled and ready to ride!

Please click the link below to view the warranty policy https://www.deviatecycles.com/warranty

We offer Canada wide shipping for Deviate bikes kits at a flat rate of $199.

Or free pickup in our shop, located in Port Coquitlam, BC.

All bikes are final sale.

A 15% cancellation fee will apply to any bike orders which are cancelled within 48 hours of placing the order online.

If it has been longer than 48 hours since the order was placed, we are unable to cancel the order or offer a refund.

If you have any questions, please contact us.

Kit Spec

The Deviate Claymore full-suspension mountain bike (MTB) frame features a full-carbon make-up, designed to work with 29" wheels front and rear. The frame is optimised for enduro racing where it offers an unrivalled balance of high-speed control and excellent pedalling efficiency for all-day riding comfort thanks to our meticulously tested high-pivot suspension design . The frame is compatible with both 180mm and 170mm long travel forks for the front travel and 165mm of travel for the rear wheel.

Frame Deviate Claymore UDH, Full Carbon, 165mm Travel
Fork Fox 38 Factory 29" 170mm GRIPX2 (2025)
Shock Fox Float X2 Factory
Wheels Race Face Turbine 29" Wheels (tubeless ready)
Crankset Race Face Turbine R Cinch 170mm
Chainring Raceface SHI12 Chainring
Chain Shimano XT 12spd M8100
Derailleur Shimano XT 12spd M8100
Shifter Shimano XT 12spd M8100
Cassette Shimano XT 12spd M8100 10t-51t
Dropper Post One Up V3 Dropper Post
Saddle Ergon SM Enduro Saddle
Remote One Up V3 Remote
Tires Maxxis Minion DHR II 29"x2.4 EXO+ Maxxterra & Assegai EXO+ Maxxgrip 29"2.5"
Stem Race Face Aeffect
Handlebar Race Face Turbine 35mm, 800mm, 20mm
Grips One Up Black
Brakes Shimano XT M8120 4-piston
Rotors Galfer Wave 203mm/180mm rotors
Bottom Bracket Raceface BSA Cinch BB
Headset Cane Creek 40

*Spec is subject to change, and bikes might not be exactly as pictured.

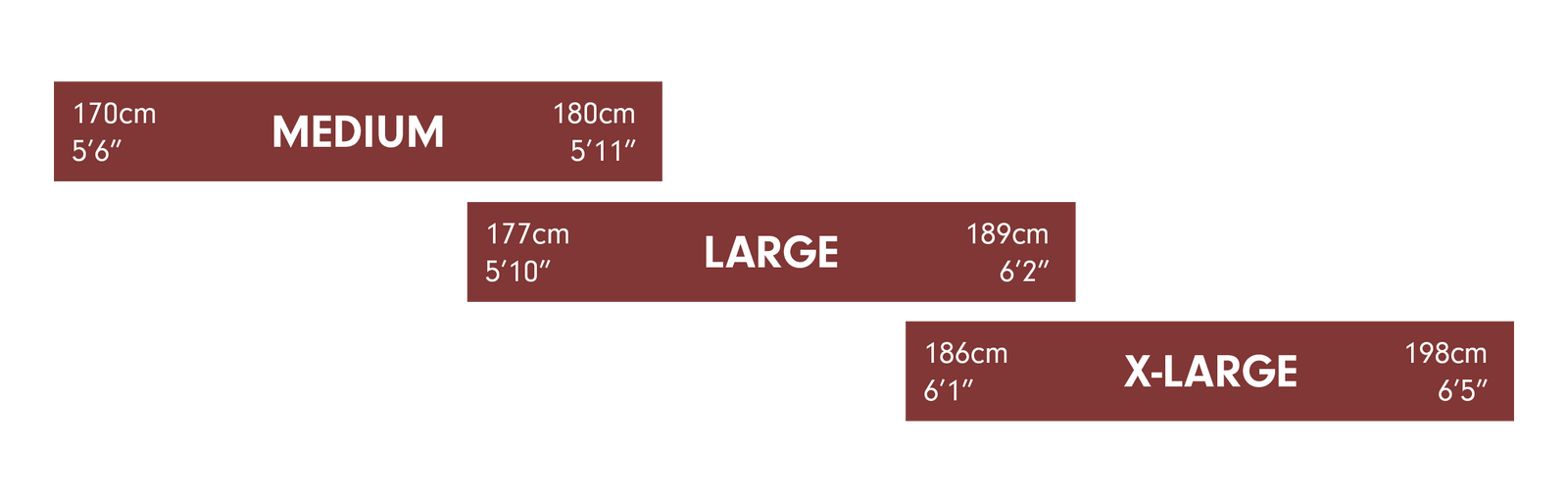

Sizing Guide

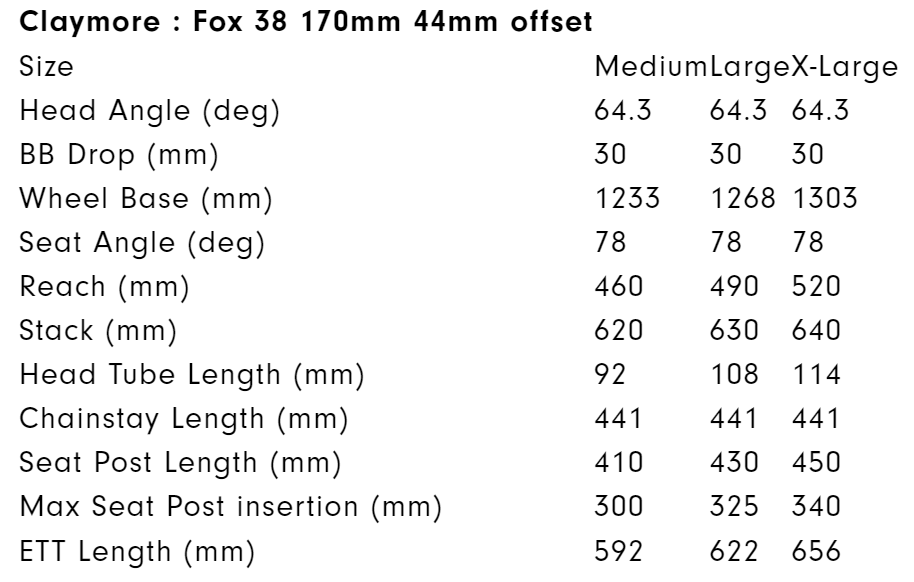

Geometry

Component Standards

Rear Wheel: 29”, Boost: 148mm * 12mm
Fork Compatibility: 29” 170 or 180mm with 44/42mm offset
Bottom Bracket: 73mm BSA Threaded
Headset: ZS44/28.6 upper and a ZS56/40 lower headset cup
Cranks: Minimum Q-factor of 168mm
Chainline: 52mm
Chain length: 126 links (widely available, no need to join chains)
Max Chainring Size: 36t
Shock Size: Metric 230*60mm
Shock Hardware: Front: 40*8mm | Rear: Eyelet bushing
Brake Mount: Post Mount 180mm
Seatpost Compatibility: Internal dropper routing with internal cable routing. 34.9”
Seat Collar: 38.5mm
Mech hanger: UDH (Universal Derailleur Hanger)
Rear Axle: M12xP1.75 | 192mm long | Thread length is 26mm (minimum 20mm)

Deviate Claymore FAQ

Yes, the bike and all the parts arrive 90% assembled and require a very minimal assembly.

We suggest around 30% for most riders, but this will vary depending on terrain and personal preference.

No - a standard 126 link chain will work with even a 12 speed Shimano or Sram set-up.

ZS44/28.6 upper and a ZS56/40 lower headset cup.

Absolutely. We have two lower ISCG-05 tabs which allow the use of a lower guide/bash.

Yes! Just select the MX wheel size option.

We suggest a 170-180mm fork with a 44mm offset. A 51mm offset is compatible and will lead to a slightly more lively steering feel. We do not recommend triple clamp or dual crown forks with the Claymore.

The Claymore will work with most coil or air shocks on the market - we recommend a mid-mid initial tune. We can’t guarantee that a specific shock will have clearance. The shocks available on our online store are all compatible. Please note that shocks with rear rebound adjustment may be problematic to adjust.

We’ve designed The Claymore to run 2.6” tires.

Deviate

High Pivot Bikes

Deviate's Vision: To accelerate the evolution of mountain bike design, for and with riders

Explore Deviate Bikes
The Claymore

"High Pivot Heaven" - Pinkbike's Field Test

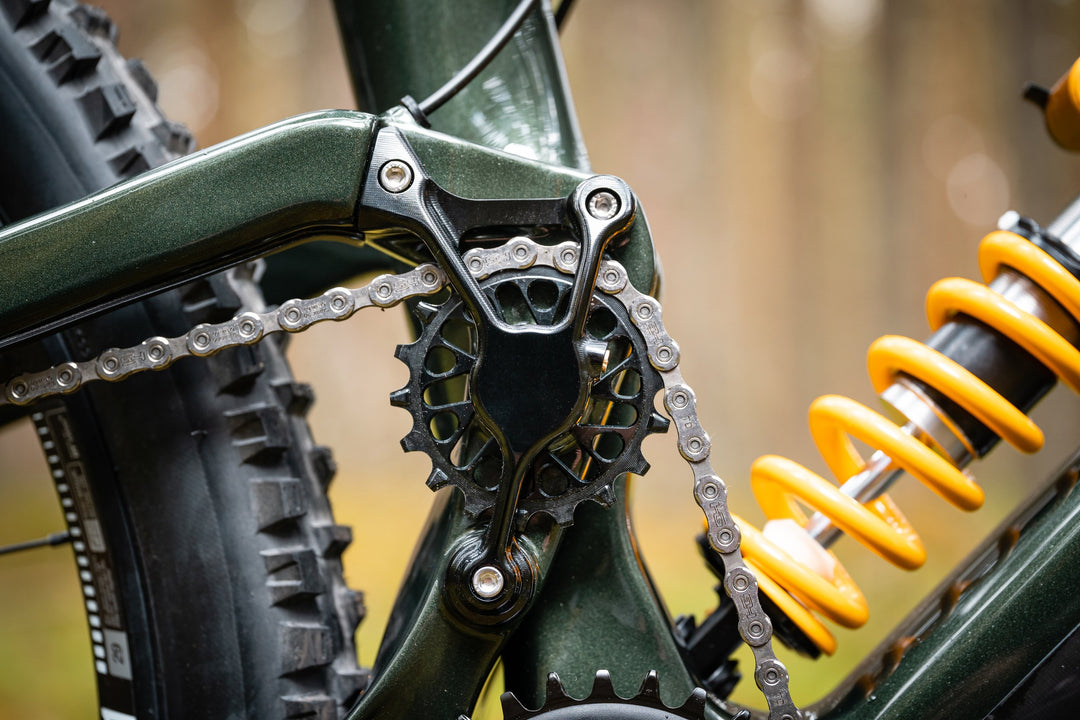

"The unique kinematics of a high pivot point design maintains chassis stability and geometry under heavy braking. This allows our designers to achieve stability and straight line speed while maintaining sensible geometry."

Designed to win

Speed without sacrifice

The design brief was to create an enduro bike capable of winning on the toughest of enduro stages, with pedal performance to match a trail bike and an element of playfulness for those days when you’re not between the tape.
